PC802 Evaluation Board (PC802EVB)
The PC802 EVB is a PCIe board that brings all the main interfaces of the PC802 to connectors. As well as the 4-line Gen 4 PCIe interface, 10G/25G Ethernet is available via an SFP+ and the JESD204B lanes are brought to FMC connectors, which is suitable for connection to evaluation boards that are available from a number of RFIC vendors. Full clock synchronisation is available and the board can function as a PTP master.
PC802 Small Cell Development Board (PC802SCB)
The PC802SCB is a flexible 5G NR/LTE development platform designed to evaluate the PC802 chip across various small cell deployment scenarios:
- Split 0 integrated small cell (gNB) with Full PHY functionality
- Split 2 Distributed unit (gNB-DU) with full PHY functionality
- Split 6 Radio Unit (S-RU) with full PHY functionality
- Split 7.2 Radio Unit (O-RU) with low PHY functionality
The development board integrates a PC802 chip connected to an onboard NXP LS1046A network processor and ADI ADRV9029 RF transceiver. The transceiver’s 4 Tx output signals and 4 Rx input signals are routed to SMA connectors for testing and integration.
PC802 SCB600
The PC802 SCB600 is an ultra-compact, cost-effective, high-performance 5G base station board based on Sub-6G technology with flexible configuration options. It features:
- Rockchip RK3399 processor
- PC802 baseband chip
- ADRV9025 RF transceiver
- Support for 4G/5G dual-mode operation
- 2x2T2R configuration with 4-channel DPD
The compact board offers high versatility with built-in GNSS receiver and supports external high-power amplifiers.
ORANIC - In-line PHY and NIC for O-DU
The PC802 ‘ORANIC’ is a Small Cell Forum award-winning Open RAN PHY and NIC board, designed for 5G/4G O-RAN O-DU servers. ORANIC interfaces to L2 software via the Open RAN SCF FAPI interface. It includes 4 PC802s, driving 4 25G SFP interfaces conformant to the O-RAN Open Fronthaul interface. It is capable of driving 16 2T2R or 8 4T4R O-RUs.

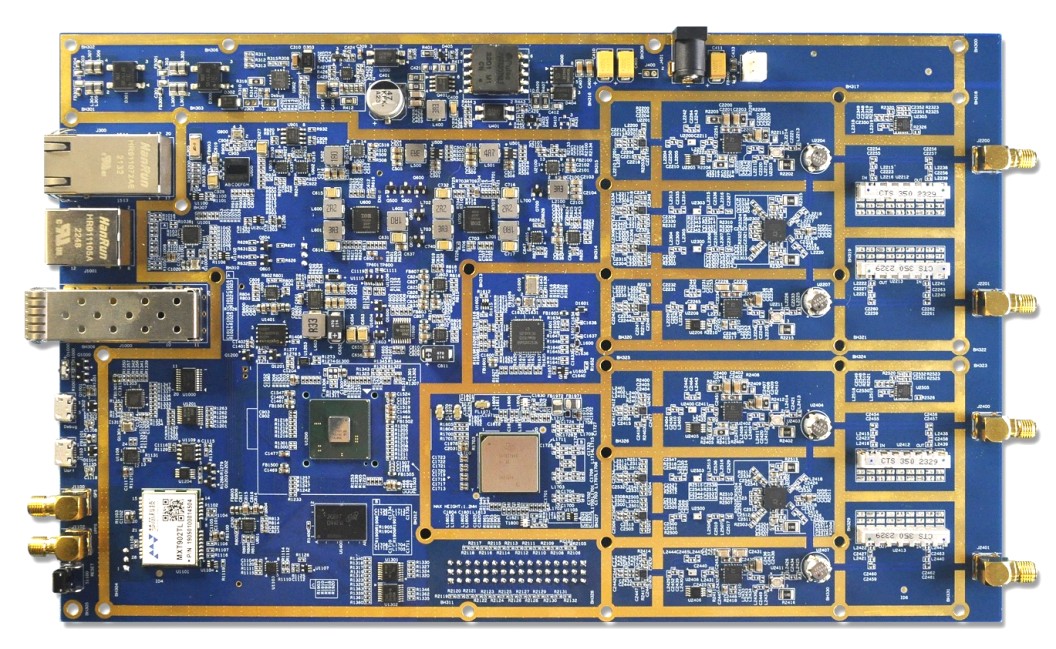

PC805 RDB O-RU Board
The PC805 RU Demonstrator Board is a flexible 5G NR/LTE Radio Unit (RU) board used to demonstrate the PC805 SoC with on-board RF transceiver, front-end and associated support circuitry.
The PC805 RU Demonstrator Board integrates a TI AFE7769D 4T4R RFIC complete with band n78 RF front end, based on an iCana demonstrator design.
Available in two versions:
- PC805RDB-41: Configured for band n41
- PC805RDB-78: Configured for band n78

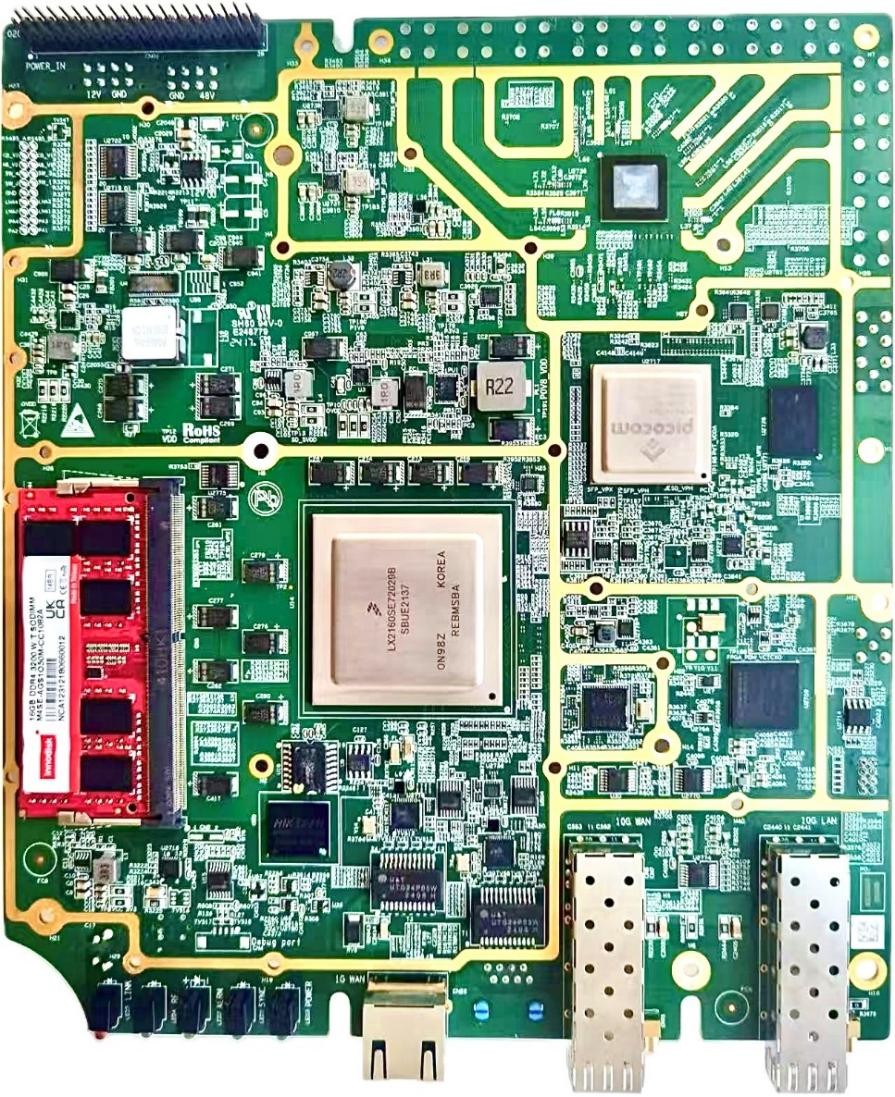

SPP01 Integrated High-Power Board
This software-defined radio architecture board supports:
- Flexible protocol software loading
- Multiple mode configurations: 4G, 5G, 4G/5G dual-mode
Key components:
- NXP LX2160 higher-layer protocol processor
- PC802 baseband processor
- ADRV9025 digital IF and small signal processor
- 4-channel transceiver support
The compact, highly integrated design offers low power consumption and high stability for portable applications, with open RF interfaces for easy external power amplifiers integration and rapid customization.
